    Stainless Steel Honeycomb Conveyor Belts For Bread Production Systems

    Ask Lasest Price
    Brand Name : comesh
    Model Number : zora250214
    Certification : FDA
    Price : Price negotiable
    Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram
    Supply Ability : 50meters 15days
    Delivery Time : 20days
    • Product Details
    • Company Profile

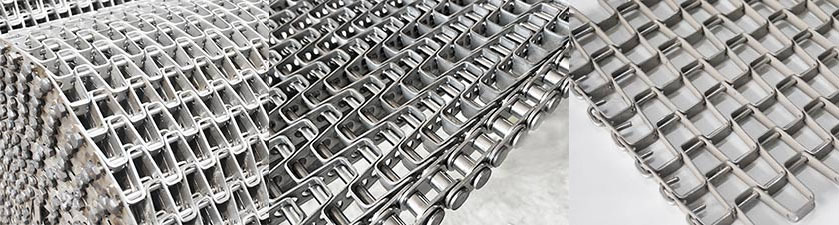

    Stainless Steel Honeycomb Conveyor Belts For Bread Production Systems

    Stainless Steel Honeycomb Conveyor Belts For Bread production Systems


    Honeycomb Conveyor Belts Description

    Honeycomb conveyor belt is a perfect products with both durability and suitable open area. It is temperature resistance, which is popular in the baking conveying applications. The flat surface of honeycomb conveyor belt supplies stable conveying during using. Honeycomb belts are used in production processes with temperatures of -30ºC up to +400ºC in food and other industries.


    We can not only provide right belts, but also provide matching sprockets and other components.


    Honeycomb Conveyor Belts Feature

    • Smooth and burr-free. The finish is smooth and burr-free for quick and easy cleaning, maximizing production.

    • High temperature resistance. The stainless steel material can maintain the perfect performance even in the extremely high or low temperature applications.

    • Corrosion and rust resistance. The stainless steel material and galvanized steel have excellent chemical stability, which are corrosion and rust resistance.

    • Durable and long service life. The high quality material and rigid structure can ensure the long lifespan of the flexible rod conveyor belt.

    • Easy to install and replace. The flexible rod conveyor belt is lightweight and easy to install and replace.

    • U-shaped links can be added on the center of conveyor belt. To decrease turning radii and improve conveying efficiency, the U-shaped conveyor belt are added onto the center of the conveyor belt.

    • Side guards are available. Side guards can be added on both side of the conveyor belt to prevent products from spillage.

    Honeycomb Conveyor Belts Applications


    ● Food Processing: Used in the transport of packaged goods, meat, poultry, and baked products, ensuring hygiene and
    easy cleaning.
    ● Beverage Industry: Ideal for bottling lines, they handle both empty and filled bottles efficiently, providing
    smooth transitions.
    ● Cold Chain Logistics: Suitable for refrigerated environments, transporting perishable goods maintaining temperature control.

    Honeycomb Conveyor Belts Specification

    Please refer to the following drawing and tell us the size you need.
    Product NameStainless Steel Honeycomb Conveyor Belts For Bread production Systems
    MaterialStainless steel, carbon steel or as your request
    Plate Thickness0.8 mm, 1 mm, 1.2 mm, 1.5 mm, 2 mm, 2.5 mm, 3 mm, 5mm, etc Customers can choose as per load capacity requirements
    Width
    200 mm to 4000 mm, there has limitation for laser cutting machine, so max width we can process at present is 4000mm
    Supporting roller
    Supporting rollers can be added on bottom side of the conveyor belt to support more load capacity ( for width of the conveyor belt is big, we suggest adding this)

    Material Availability


    MaterialMaximum Operating Temperature °C
    Carbon Steel550
    Galvanised Mild Steel400
    Chrome Molybdenum700
    304 Stainless Steel750
    321 Stainless Steel750
    316 Stainless Steel800
    316L Stainless Steel800
    314 Stainless Steel1120

    Edge Types


    • Honeycomb belt with welded edges
    • Honeycomb belt with Chain edges
    • Honeycomb belt with clinged edges


    Stainless Steel Honeycomb Conveyor Belts For Bread Production Systems



    Contact us



    FAQ

    Q1. Are you a factory or trading company?

    A: We are both factory and trade company

    Q2. How to place an order?

    A: Once you find the US, you can place an order on Alibaba or signed a contract with the US.30% deposit is charged before customized fabric are manufactured

    Q3. What about payment terms?

    A: T/T, L/C, Western Union, Escrow, Paypal, and some other payment terms are accepted.

    Q4. What about the shipping date?

    A: The shipping date would be in 15 days after contract confirmed, except customized fabric.
