304 Stainless Steel Metal Flexible Rod Conveyor Belts For Cooling
Spiral Tower

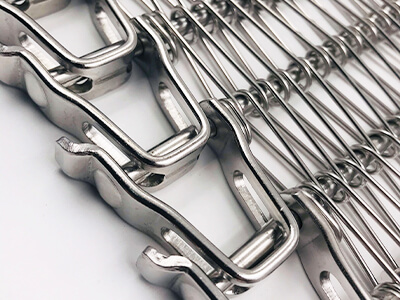

Flexible Rod Conveyor Belts Description
A Flexible Rod Belt is constructed from 3 components.
1. Alternating spirals take care of the belt overlay.
2. These spirals are connected to each other by means of smooth
cross rods.
3. Special chain links are mounted at the outer sides, which are
locked by means of button heads.
The Flexible Rod Belt is a versatile conveyor belt. This belt has
been developed for a variety of applications, constructions and
process conditions. Whether used on spiral or straight conveyors,
the Flexible Rod Belt is particularly suitable for cooking, cooling
or freezing products such as bread, pastry, vegetables, potatoes,
fish and meat. It can also be used for blanching vegetables,
proofing dough, drying, baking or pasteurising. Belts are used in
concentric systems, spiral towers, curved and straight conveyors.
We can not only provide right belts, but also provide matching
sprockets and other components.
Flexible Rod Conveyor Belts Feature
• Smooth and burr-free. The finish is smooth and burr-free for quick and easy cleaning,
maximizing production.
• High temperature resistance. The stainless steel material can maintain the perfect performance
even in the extremely high or low temperature applications.
• Corrosion and rust resistance. The stainless steel material and galvanized steel have excellent
chemical stability, which are corrosion and rust resistance.
• Durable and long service life. The high quality material and rigid structure can ensure the long
lifespan of the flexible rod conveyor belt.
• Easy to install and replace. The flexible rod conveyor belt is lightweight and easy to install
and replace.
• U-shaped links can be added on the center of conveyor belt. To decrease turning radii and improve conveying efficiency, the
U-shaped conveyor belt are added onto the center of the conveyor
belt.
• Side guards are available. Side guards can be added on both side of the conveyor belt to
prevent products from spillage.
Flexible Rod Conveyor Belts Applications
Rod and spiral alternating coils structure efficiently improve
production and reduce downtime. Owing for robust construction, this
rod conveyor belting need far less maintenance. Besides, Flexible
Rod belts can also be supplied with a link in the centre of the
belt width to decrease its turning radii, as well as side guards to
prevent product spillage.

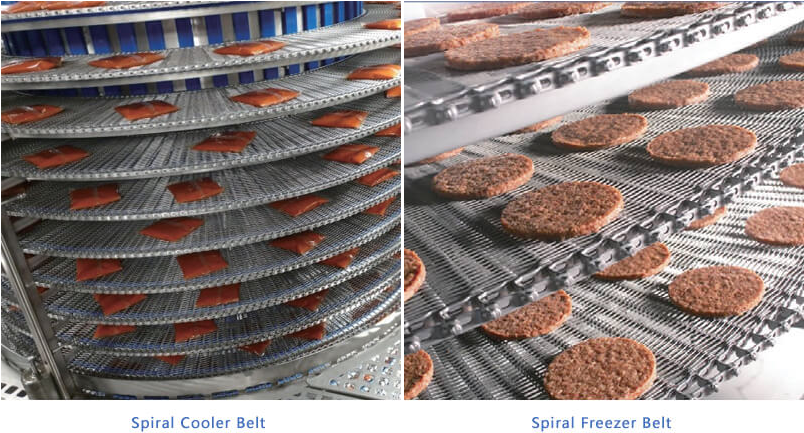

● Spiral Freezer Belt
● Spiral Cooler Belt
● Spiral Proofer Belt
● Spiral Dryer Belt
● Spiral Cooker Belt
● Spiral Heating Belt
● Turn Curve Transfer Belt
● Transfer and Packaging Belts

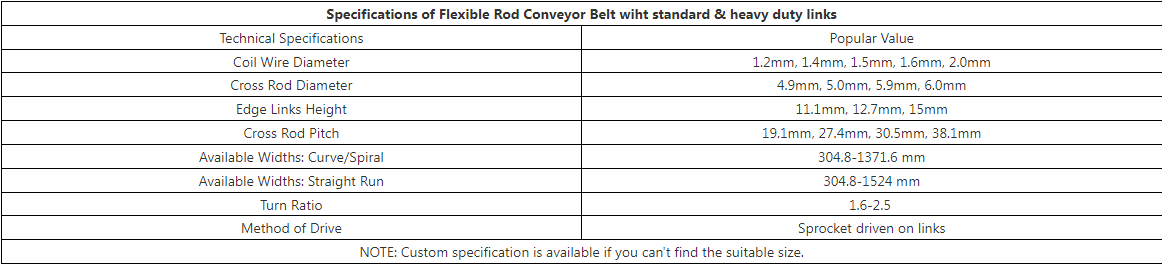

Flexible Rod Conveyor Belts Specification

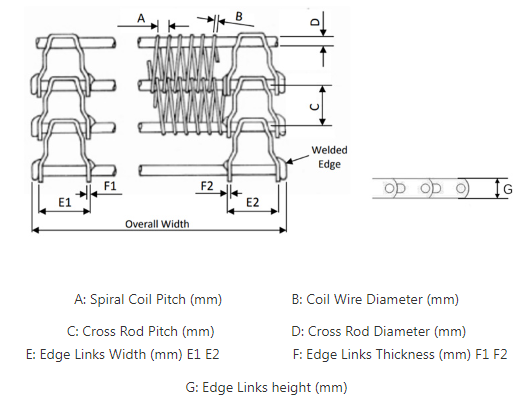

Please refer to the following drawing and tell us the size you
need.
| Product Name | Flexible Rod Conveyor Belts For Biscuits, Tortillas, Cookies And
Crackers Baking |
| Material | Stainless steel, carbon steel or as your request |
| Wire diameter | 0.8 mm, 1 mm, 1.2 mm, 1.5 mm, 2 mm, 2.5 mm, 3 mm, 5mm, etc Customers can choose as per load capacity requirements |
| Width | 200 mm to 4000 mm, there has limitation for laser cutting machine,
so max width we can process at present is 4000mm |
Supporting roller | Supporting rollers can be added on bottom side of the conveyor belt
to support more load capacity ( for width of the conveyor belt is
big, we suggest adding this) |
Material Availability
| Material | Maximum Operating Temperature °C |
| Carbon Steel | 550 |
| Galvanised Mild Steel | 400 |
| Chrome Molybdenum | 700 |
| 304 Stainless Steel | 750 |
| 321 Stainless Steel | 750 |
| 316 Stainless Steel | 800 |
| 316L Stainless Steel | 800 |
| 314 Stainless Steel | 1120 |
Edge Type
Flexible Rod Belt with standard U-shaped link edge
Flexible Rod Belt with standard U-shaped link and reinforced plate
Founded in 2015 Anping County Comesh Filter Company Limited locates
in Anping County where is the famous Wire Mesh material supply base
in China. In recent years, our company has introduced a series of
professional production equipment, including resistance welding
machines, punching machine, hydraulic bending machine, hydraulic
plate shearing machine, laser marking machine, plasma cutting
machine. With more than 7 years development, Comesh not only
produce metal wire mesh?and?wire mesh filters, but also?produce?food grade materials, such as customized metal wire
mesh perforated tray, metal conveyor belt, metal mesh basket,nylon
and polyester filter mesh, polyester mesh belt, mesh filters and
bags, which could be used for drying, baking, freezing,cooling,
dehydrating, filtering, washing, deep frying, sterilizing and
conveyor.?We have obtained S G S certificate, and?welcome O E M and
O D M orders. Customized production is our advantage. our products
are mainly exported to North America, South America,Australia, East
Asia, Europe, and Mideast. Our aim is Meet the change and be
creative, fast shipment, excellent service both before and after
sales! We are looking forward to establishing a long-term business
relationship with overseas in the near future based on mutual
benefits. If you are interested in our products or our company,
please feel free to contact us for more details.We welcome customer
visiting our factory and we will supply you the best offer and
service!
