Customized Wire Mesh Chain Conveyor Belt Stainless Steel Spiral Wire Mesh Conveyor Belt

Hengshui Qualified Filter Screen Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Customized Wire Mesh Chain Conveyor Belt Stainless Steel Spiral Wire Mesh Conveyor Belt from wholesalers

    Buy cheap Customized Wire Mesh Chain Conveyor Belt Stainless Steel Spiral Wire Mesh Conveyor Belt from wholesalers
    • Buy cheap Customized Wire Mesh Chain Conveyor Belt Stainless Steel Spiral Wire Mesh Conveyor Belt from wholesalers
    • Buy cheap Customized Wire Mesh Chain Conveyor Belt Stainless Steel Spiral Wire Mesh Conveyor Belt from wholesalers
    • Buy cheap Customized Wire Mesh Chain Conveyor Belt Stainless Steel Spiral Wire Mesh Conveyor Belt from wholesalers

    Customized Wire Mesh Chain Conveyor Belt Stainless Steel Spiral Wire Mesh Conveyor Belt

    Ask Lasest Price
    Brand Name : comesh
    Model Number : ail0212
    Price : negotiation
    Payment Terms : T/T
    Supply Ability : 100m per month
    Delivery Time : 5-8days
    • Product Details
    • Company Profile

    Customized Wire Mesh Chain Conveyor Belt Stainless Steel Spiral Wire Mesh Conveyor Belt

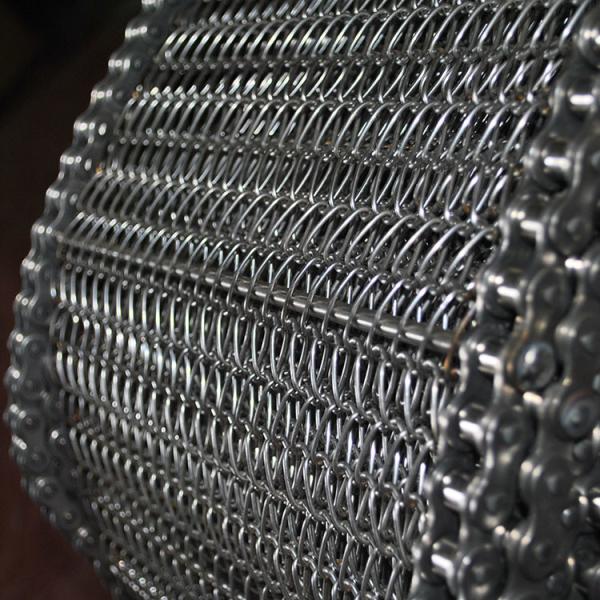

    Stainless Steel Wire Mesh Chain Conveyor Belt Spiral Wire Mesh Belt


    Wire mesh conveyor belt description


    Spiral metal conveyor belt is the most common type of metal conveyor belt, it is divided into left and right spiral mesh strips, through the strip connection, two end edge welding to ensure the width of the mesh belt.


    Wire mesh conveyor belt specification


    Balanced Weave Conveyor Belts specifications
    Item No.Spiral wire pitchCross rod pitchSpiral wire diameterCross wire diameter
    mmmmmmmm
    BWCB-001440.9 to 1.21.2 to 1.6
    BWCB-00256.40.9 to 1.21.2 to 1.6
    BWCB-003550.9 to 1.61.2 to 1.6
    BWCB-004660.9 to 1.61.2 to 1.6
    BWCB-005680.9 to 1.21.2 to 1.6
    BWCB-0066100.9 to 1.61.2 to 1.6
    BWCB-0078121.2 to 2.01.2 to 2.5
    BWCB-0088131.2 to 2.01.2 to 2.5
    BWCB-0098151.2 to 2.01.2 to 2.5
    BWCB-01011151.2 to 2.01.2 to 2.5
    BWCB-01111201.6 to 3.01.6 to 3.0
    BWCB-01211251.6 to 3.01.6 to 3.0
    BWCB-01311271.6 to 3.01.6 to 3.0
    BWCB-01415201.6 to 3.01.6 to 3.0
    BWCB-01515251.6 to 3.01.6 to 3.0
    BWCB-01622231.6 to 3.01.6 to 3.0
    BWCB-01722331.6 to 3.02.0 to 4.0
    Note: 1. If flat wire, please give us cross section.
    2. Custom specification is available if you can't find the suitable size.


    Wire mesh conveyor belt Features


    1.Wide selection of materials, mesh can be customized.

    2.Smooth surface, high toughness, strong corrosion resistance, high tensile strength, good air permeability, not easy to deformation, durable and other special functions.

    3.Wire diameter can be provided according to customer's request.

    4.It has the characteristics of acid resistance, alkali resistance, low resistance and high temperature resistance.

    5.It has good conveying function, fracture resistance and oxidation resistance.

    6.Easy installation, smooth operation, no deflection Suitable for high density transportation in small.


    Wire mesh conveyor belt Applications


    1. Annealing Oven Conveyor Belts

    2. Cooker Conveyor Belts

    3.Fryer Conveyor Belts

    4. Drying Conveyor Belts

    5. Cooling Conveyor Belts

    6. Washing Conveyor Belts

    7. Take over Conveyor Belts

    8. Baking ovens

    9. Biscuit ovens

    10. Glass ovens

    11. Decoration ovens

    12.Hardening ovens
