Chain Link Spiral Wire Conveyor Mesh Belt For Food Transport
Description
Balanced Weave Conveyor Belts are also known as spiral wire link conveyor belts, is the most commonly used belt for wire mesh conveyor belts.
Conveyor belts are widely used in cement, cooking, metallurgy, chemical, steel and other industries with short conveying distance and small conveying capacity. Belt conveyor in agriculture, industrial and mining enterprises and transportation industry is widely used to transport a variety of solid block and powder materials or pieces of goods, conveyor belt can be continuous, high efficiency, large Angle transportation, conveyor belt operation safety,
Stainless steel mesh belt is driven by the stainless steel chain on
both. The armor plate was bent to hinge. Linked
hinge and side chain with support.It is widely used for small and
high product transmission. It works smoothly, easy installationd
replacement, long work life.The conveyor mesh belts have the characteristics of good conveying
function,anti-break and oxidization,high cold and hot
expansion,even mesh opening and thickness,and steady running
without deflection.
Specification
* A: Spiral Wire Pitch (mm) B: Spiral Wire Diameter (mm)
C: Cross Rod Pitch (mm) D: Cross Wire Diameter (mm)
* E: Roller Diameter (mm) F: Support Rod Diameter (mm)
G: Support Rod Pitch (mm) H: Chain Pitch (mm) I: Plate Thickness (mm)
Material Availability
Material | Maximum Operating Temperature °C |
Carbon Steel | 550 |
Galvanised Mild Steel | 400 |
Chrome Molybdenum | 700 |
304 Stainless Steel | 750 |
321 Stainless Steel | 750 |
316 Stainless Steel | 800 |
316L Stainless Steel | 800 |
314 Stainless Steel | 1120 |
Feature
Smooth and burr-free. The finish is smooth and burr-free for quick and easy cleaning, maximizing production.
High temperature resistance. The stainless steel material can maintain the perfect performance even in the extremely high or low temperature applications.
Corrosion and rust resistance. The stainless steel material and galvanized steel have excellent chemical stability, which are corrosion and rust resistance.
Durable and long service life. The high quality material and rigid structure can ensure the long lifespan of the flexible rod conveyor belt.
Easy to install and replace. The flexible rod conveyor belt is lightweight and easy to install and replace.
U-shaped links can be added on the center of conveyor belt. To decrease turning radii and improve conveying efficiency, the U-shaped conveyor belt are added onto the center of the conveyor belt.
Side guards are available. Side guards can be added on both side of the conveyor belt to prevent products from spillage.

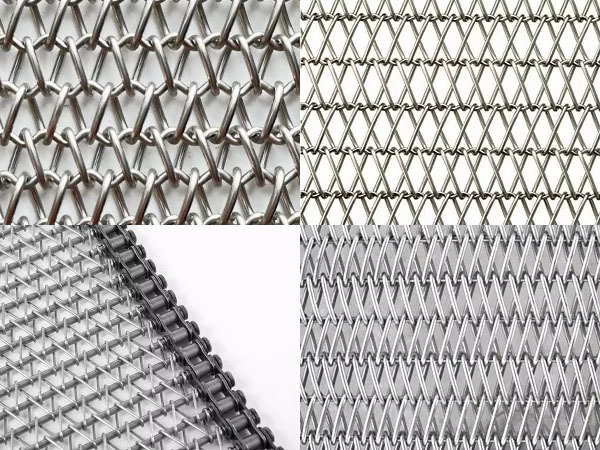

Belt Types
Standard Balanced Spiral Woven Belt
Edge Type
* Welded Edge
* Laddered Edge
* Hook Edge
* Chain Edge Driven Mesh
Chain Type
