Metal Ladder Mesh wire Conveyor Belt For Baking Oven Food Factories
Wire Conveyor Belts Description

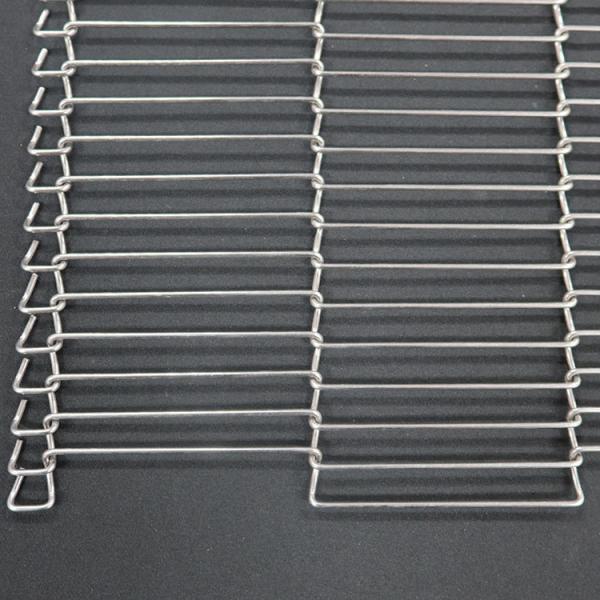

The 304 316 stainless chain metal mesh conveyor belt for Pizza oven
has a single-layer structure, is lighter, and is driven by a
sprocket. The large opening area (opening 70-85%) makes the mesh
belt very breathable. The ladder link conveyor mesh belt is made of
stainless steel high-elasticity and flexible wire, which can be
used for linear conveyors or curved conveyors.
Application: stainless steel ladder link conveyor mesh belt is
often used in equipment such as cooling, frying, baking, drying,
heating, decoration, flour coating, and packaging of lighter
products. For example: drying and conveying of small desserts, fish
products, pizza, vegetables, bread, meat,candy, potatoes, biscuits,
chocolate, nuts, fruits, etc.
Wire Conveyor Belts specification
| Specifications of Conveyor Belts |
| Item | Wire diameter | Pitch | Open area | Edge type |
| (mm) | (mm) | (%) |
| FFCB-01 | 0.9 | 4.24 | 77 | Single/ double |
| FFCB-02 | 0.9 | 5.64 | 82 | Single/ double |
| FFCB-03 | 1 | 5.5 | 79 | Single/ double |
| FFCB-04 | 1 | 5.6 | 79.5 | Single/ double |
| FFCB-05 | 1.27 | 4.3 | 67 | Single |
| FFCB-06 | 1.27 | 5.5 | 73 | Single/ double |
| FFCB-07 | 1.27 | 6 | 76 | Single/ double |
| FFCB-08 | 1.27 | 6.35 | 77 | Single/ double |
| FFCB-09 | 1.27 | 7.26 | 80 | Single/ double/ C-shape |
| FFCB-10 | 1.4 | 6.4 | 76 | Single/ C-shape |
| FFCB-11 | 1.6 | 7.26 | 75 | Single/ double/ C-shape |
| FFCB-12 | 1.83 | 12 | 81 | Single |
| FFCB-13 | 1.83 | 12.7 | 82 | Single/ C-shape |
| FFCB-14 | 2.08 | 9.6 | 75 | Single/ C-shape |
| FFCB-15 | 2.35 | 12.7 | 78 | Single/ C-shape |
| FFCB-16 | 2.35 | 20.32 | 85 | Single |
| FFCB-17 | 2.8 | 12.7 | 72 | Single/ C-shape |
| Note: Custom specification is available if you can't find the
suitable size. |
Wire Conveyor Belts advantage
Metal Enrober Wire Mesh Conveyor Belt,Stainless steel chocolate
coating machine mesh belt,Stainless steel ladder link mesh conveyor
belt,Stainless steel spray egg machine mesh conveyo belt,Stainless
steel enrober wire mesh conveyor belt
Usually these belts are called Chocolate Conveyor belts whish are
made by assembling the successively bent wires.
1.The sprocket drive ensures positive and stable running.
2.The rotation diameter is small,so that smooth products transfer
is ensured.
3.Easy washing is ensured.
4.Because of large open area,high air permeability and dehydration
capacity are ensured.
Parameter: More as follow
Wire Conveyor Belts application
1. The product scope of application: quick-frozen, baking machinery
plane conveyor, screw conveyor, food machinery, cleaning,
sterilization, drying, cooling, cooking, annealing, roast flowers,
transportation in glass machinery bottles, etc.
2, All kinds of pipeline conveying.
3. Glass industry is widely used in annealing LuWang, roast flowers
LuWang, etc.
4. Food processing industry, dehydrated vegetables, frozen food iqf
machine pretreatment mesh belt, chain network.
5. Powder metallurgy, metal heat treatment, hardening, sintering,
brazing, roasting, bright, black, bearing, carburizing
high-temperature LuWang belt, baffle type drying conveyor mesh
belt, mesh belt, foam nickel reduction net belt production line,
washing machine, hoisting machine, drying machine, dryer. Each
delivery such as process equipment.
