    Food Grade Ladder Wire Mesh Conveyor Belt For Chocolate Coating

    Ask Lasest Price
    Brand Name : COMESH
    Model Number : AIL250212
    Price : negotiation
    Payment Terms : T/T
    Supply Ability : 100m per month
    Delivery Time : 5-8days
    • Product Details
    • Company Profile

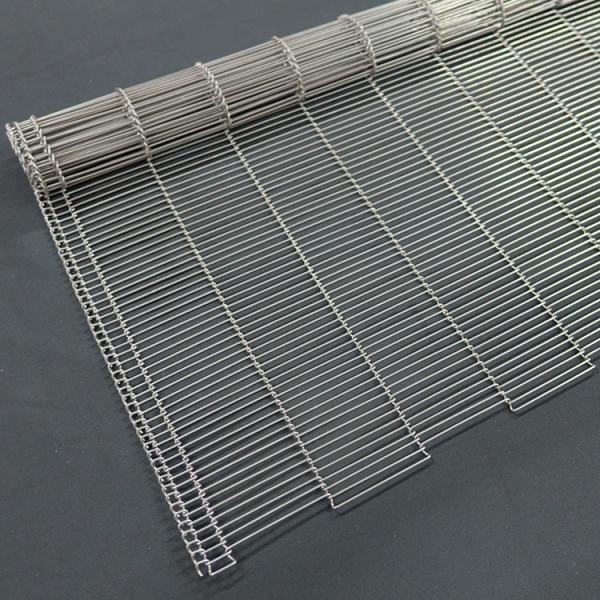

    Food Grade Ladder Wire Mesh Conveyor Belt For Chocolate Coating

    Food Grade Ladder Wire Conveyor Belt For Chocolate Coating


    Wire Conveyor Belts Description


    The conveyor mesh belts have the characteristics of good conveying function,anti-break and oxidization,high cold and hot expansion,even mesh opening and thickness,and steady running without deflection.SS304 Stainless steel balance weave convey mesh belt with steel chain we can supply big weave conveyor belt with 1m wide,1.1m wide,1.2m wide.....we support customization.
    Inox stainless steel metal conveyor wire mesh belt Z type
    conveyor systems price for pizza oven chocolate enrober bakery Conveyor belt with Z type is also called chocolate conveyor belt or ladder belt.

    Wire Conveyor Belts specification


    Specifications of Conveyor Belts
    ItemWire diameterPitchOpen areaEdge type
    (mm)(mm)(%)
    FFCB-010.94.2477Single/ double
    FFCB-020.95.6482Single/ double
    FFCB-0315.579Single/ double
    FFCB-0415.679.5Single/ double
    FFCB-051.274.367Single
    FFCB-061.275.573Single/ double
    FFCB-071.27676Single/ double
    FFCB-081.276.3577Single/ double
    FFCB-091.277.2680Single/ double/ C-shape
    FFCB-101.46.476Single/ C-shape
    FFCB-111.67.2675Single/ double/ C-shape
    FFCB-121.831281Single
    FFCB-131.8312.782Single/ C-shape
    FFCB-142.089.675Single/ C-shape
    FFCB-152.3512.778Single/ C-shape
    FFCB-162.3520.3285Single
    FFCB-172.812.772Single/ C-shape
    Note: Custom specification is available if you can't find the suitable size.

    Wire Conveyor Belts advantage


    * Durable,long service life

    * Withstand high temperatures
    * Good air permeability
    * Good stability
    * Simple structure and easy cleaning

    Wire Conveyor Belts application


    1. Baking
    2. Dough Rolling
    3. Battering
    4. Breading
    5. Shrink Wrapping
    6. Sterilization
    7. Soldering
    8. Architectural Mesh
    9. Shuttling
    10. Side Shifting
    11. Collating
    12. Crumbing
    13. Searing
    14. Glazing
    15. Preparation
    16. Sieving
    17. Cooking
    18. Heating
    19. Drying
    20. Cooling
    21. Coating
    22. Drainage
    23. Freezing
